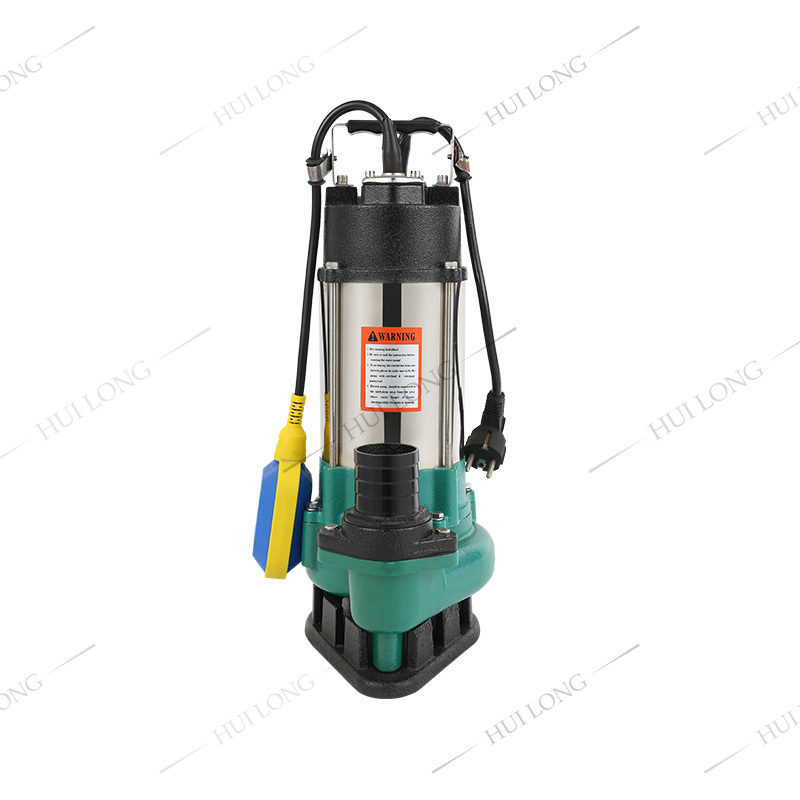

V Submersible Pumps

Feature
The pumps are designed for draining dirty water,wastewater and sewage in domestic and civil applications. Being equipped with a half-open impeller, the pumps are allowed to pump liquids containing suspended solids up to 45mm and short fibres.
The pumps are outstanding in the reliabillity with automatic float switch and builded in over-load protector.
  • Technical Parameters
  • Ecterprise Strength
  • Any Question
Working Condition
Max.submerged depth:5m
Fluid temperature up to +60℃
Max ambient temperature +40°C
Max passage for suspended solids: Φ45mm

Component Material
Pump body Cast iron
Motor bracket Stainless steel
lmpeller Cast iron
Motor shaft SS304 or CS#45
Mechanical seal Ceramic-graphite
Bearing Normal or C&U


Motor Information
Two-pole induction motor
Single-phase 220V/50Hz 110V, 220V/60Hz
Thermal protector for single-phase
Continuous duty
Insulation calss: E
Protection:lP X8


Modol Power Outlot Max. Flow Max Head Dim G.W
single phaso Kw Hp Inch L/min m mm Kg
V180F 0.18 0.2 1 1/2n 133 7 220x180x450 12
V250F 0.25 0.35 1 1/2n 150 7.5 240x180x450 14
V450F 0.45 0.55 2n 290 8.5 260x200x500 18
V750F 0.75 7 2n 300 12 260x200x550 20
V1100F 1.1 1.5 2n 360 13 280x220x560 22
