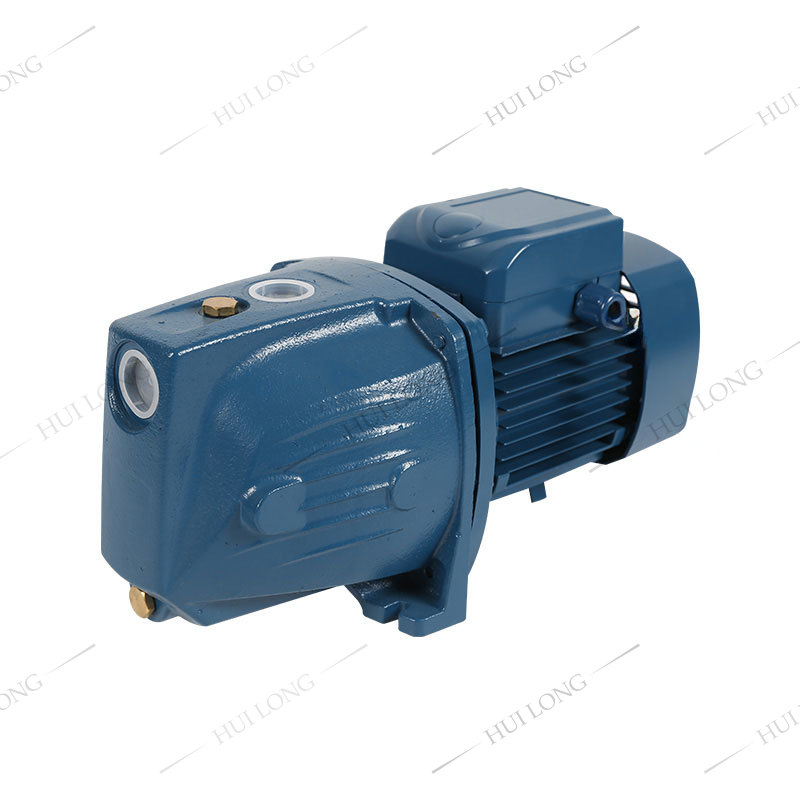

JSW-10M-1 Self-Priming Pumps

Feature
The pumps are for pumping clean water and fluids which are not chemically aggressive to the pump components even in the presence of entrapped air in the fluid being pumped.
They are particularly used for domestic applications such as the automatic distribution of water from tanks, water gardening, etc.
  • Technical Parameters
  • Ecterprise Strength
  • Any Question
Working Condition
Suction lift up to 9m
Fluid temperature up to +60℃
Max ambient temperature +40°C

Component Material
Pump body Cast iron
Motor bracket Aluminium
lmpeller Brass or PPO
Ejector PC or PPO
Motor shaft SS304 or CS#45
Mechanical seal Ceramic and graphite
Bearing Normal or C&U


Motor Information
Two-pole induction motor
Single-phase 220V/50Hz 220V/60Hz 110V/60Hz
Three-phase 380V/50Hz,60Hz
Thermal protector for single-phase
Continuous duty
Insulation calss: B
Protection:lP44


Model Power lnlet Outlet Max Flow Max Head Max Suction Dim G.W
Single phase Kw Hp inch inch m3/h m m mm kg
JSW37 0.37 0.5 1" 1" 2.5 32 9 390x190x230 9.5
JSW55 0.55 0.75 1" 1" 3 41 9 475x195x240 17
JSW75 0.75 1 1" 1" 5.4 46 9 475x195x240 18
JSW110 1.1 1.5 1" 1" 6 52 9 475x195x240 18.5
JSW150 1.5 2 1.25" 1" 7.2 55 9 535x240x260 25
JSW220 2.2 3 1.25" or 1" 1" 5.0 65 9 590x275x280 40
