AUTO Self-Priming Pump

Feature

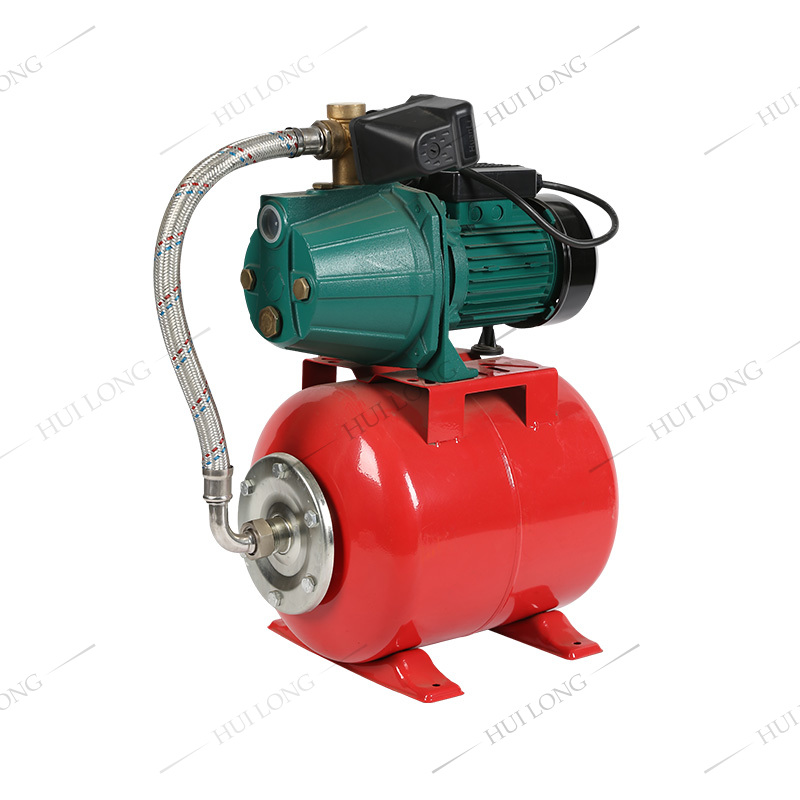

The automatic booster system consists of a water pump, a membrane tank, a pressure gauge, and a pressure switch. Most of the water pumps in this catalog can be composed and become automatic booster systems. The pressure tank with a non-toxic rubber membrane, called a pressure vessel, has been per-filling with an air pressure of about 0.12mpa before leaving the factory. These systems give suitable mains water pressure as required by modern domestic appliances and industrial applications, and will ensure enough water to supply all user outlets. For details on the pump construction, please refer to the relevant pages of this catalog. These pumps should be installed in a covered area, protected against the weather.
  • Technical Parameters
  • Ecterprise Strength
  • Any Question

Technical Data
TYPE POWER Q MAX SIZE TANk Suggested Pressure Lx WxH N.W G.W
KW L/min Inch Capacity Setting Bar mm Kg Kg
AUJET60L 0.46 40 1"x1" Horizontal 1.2-2.5 500 x300×530 17.1 19.4
AUJET80L 0.55 47 1"x1" Horizontal 1.2-2.5 500 x300×530 21.1 23.4
AUJET100L 0.75 55 1"x1" Horizontal 1.2-2.5 500 x300×530 22.1 24.4
AUJET158L 0.75 55 1"x1" Horizontal 1.2-2.5 500 x300×530 17.1 19.4
