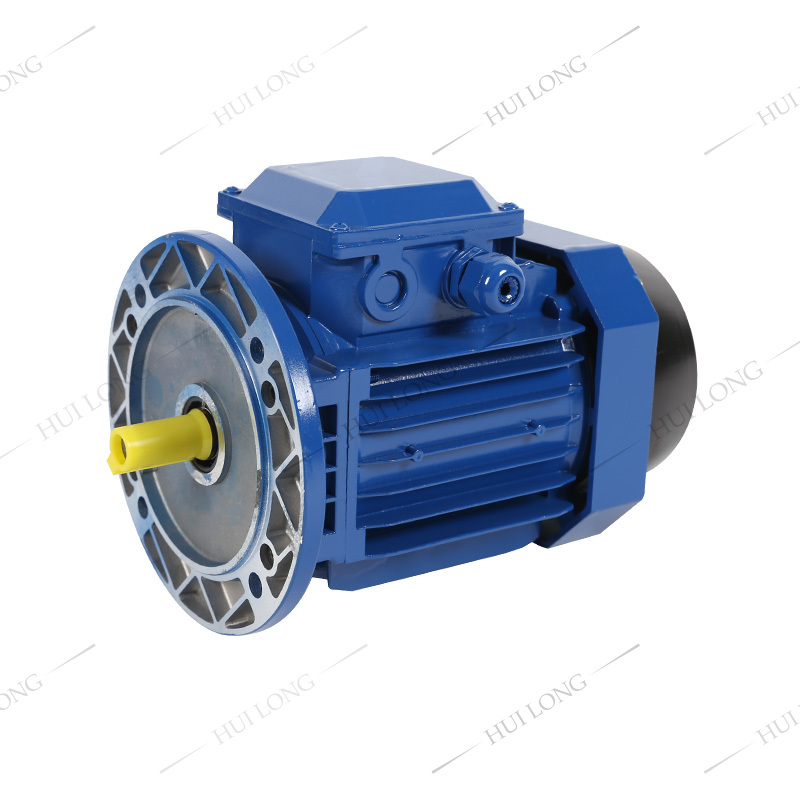

MF High Efficiency Three Phase Asynchronous Motor

Feature
Aluminum housing,aluminum front and back cover,aluminum terminal box,aluminum feet which is removable.The installation position can be changed.Terminal box comes with power wire protection screw sleeve. Light-weight, high thermal conductivity, low noise, energy saving and beautiful appearance. Long service life,good sealing,oxidation resistance, corrosion resistance,which result in usage in humid environment no matter indoor or outdoor.
  • Technical Parameters
  • Ecterprise Strength
  • Any Question
Type Rated Output Voltage
V
Frequency
Hz
Speed
r/min
Rated Current
A
EFF
%
Power Factor
cosφ
Ts
——
Tn
Is
——
In
Tmax
——
Tn
kW HP
MF-63M1-2 0.18 0.25 380 50 2720 0.53 65 0.8 2.2 5.5 2.2
MF-63M2-2 0.25 0.3 380 50 2720 0.69 68 0.81 2.2 5.5 2.2
MF-71M1-2 0.37 0.5 380 50 2740 0.99 70 0.81 2.2 6.1 2.2
MF-71M2-2 0.55 0.75 380 50 2740 1.4 73 0.82 2.2 6.1 2.3
MF-80S-2 0.75 1 380 50 2840 1.83 75 0.83 2.2 6.1 2.3
MF-80L-2 1.1 1.5 380 50 2840 2.61 76.2 0.84 2.2 7 2.3
MF-90S-2 1.5 2 380 50 2840 3.46 78.5 0.84 2.2 7 2.3
MF-90L-2 2.2 3 380 50 2840 4.85 81 0.85 2.2 7 2.3
MF-100L-2 3 4 380 50 2860 6.34 82.6 0.87 2.2 7.5 2.3
MF-112M-2 4 5.5 380 50 2880 8.2 84.2 0.88 2.2 7.5 2.3
MF-132S1-2 5.5 7.5 380 50 2900 11.1 85.7 0.88 2.2 7.5 2.3
MF-132S2-2 7.5 10 380 50 2900 14.9 87 0.88 2.2 7.5 2.3

Type Rated Output Voltage
V
Frequency
Hz
Speed
r/min
Rated Current
A
EFF
%
Power Factor
cosφ
Ts
——
Tn
Is
——
In
Tmax
——
Tn
kW HP
MF-63M1-4 0.12 0.18 380 50 1310 0.44 57 0.72 2.1 4.4 2.2
MF-63M2-4 0.18 0.25 380 50 1310 0.62 60 0.73 2.1 4.4 2.2
MF-71M1-4 0.25 0.3 380 50 1330 0.79 65 0.74 2.1 5.2 2.2
MF-71M2-4 0.37 0.5 380 50 1330 1.12 67 0.75 2.1 5.2 2.2
MF-80S-4 0.55 0.75 380 50 1390 1.57 71 0.75 2.4 5.2 2.3
MF-80L-4 0.75 1 380 50 1390 2.05 73 0.76 2.3 6 2.3
MF-90S-4 1.1 1.5 380 50 1390 2.85 76.2 0.77 2.3 6 2.3
MF-90L-4 1.5 2 380 50 1390 3.68 78.5 0.79 2.3 6 2.3
MF-100L1-4 2.2 3 380 50 1390 5.09 81 0.81 2.3 7 2.3
MF-100L2-4 3 4 380 50 1410 6.73 82.6 0.82 2.3 7 2.3
MF-112M-4 4 5.5 380 50 1410 8.8 84.2 0.82 2.3 7 2.3
MF-132S-4 5.5 7.5 380 50 1435 11.7 85.7 0.83 2.3 7 2.3
MF-132M-4 7.5 10 380 50 1440 15.6 87 0.84 2.3 7 2.3
