TYPE | POWER | H MAX | Q MAX | SIZE | PACKING QTY | |
KW | HP | m | L/min | Inch | ||
1DK-14 | 0.37 | 0.5 | 14 | 100 | 1"x1" | 2600 |
1.5DK-20 | 0.75 | 1 | 20 | 250 | 1.5"x1.5" | 2000 |
2DK-20 | 1.1 | 1.5 | 22.5 | 600 | 2"x2" | 1240 |

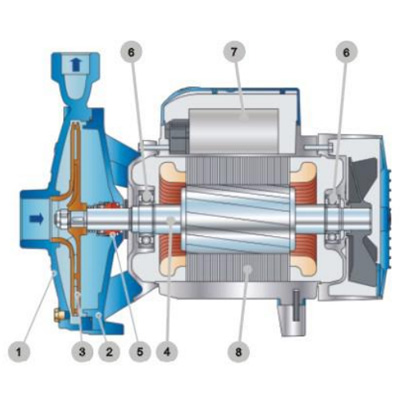

POS.COMPONENT | CONSTRUCTION CHARACTERISTICS | |||||
1 PUMP BODY | Cast iron, complete with threaded ports in compliance with IS0228/1 | |||||
2 MOTOR BRACKET | Stainless steel AISI 304 | |||||
3 IMPELLER | Stainless steel AISI 304 | |||||
4 MOTOR SHAFT | Stainless steel EN 10088-3-1.4104 | |||||
5 MECHANICAL SEAL | Pump | Seal | Shaft | Materials | ||
Model | Model | Dlameter | Stationary ring | Rotational ring | Elastomer | |
1DK-14 | AR-12 | Φ12mm | Ceramic | Graphite | NBR | |
1.5DK-20 |
AR-14 | Φ14mm | Ceramic | Graphite | NBR | |
2DK-20 |
AR-18 | Φ18mm | Graphite | Ceramic | NBR | |
6 BEARINGS | Pump | Model | ||||
1DK-14 | 6201 zz/6201 zz | |||||
1.5DK-20 |
6202 zz/6203 zz | |||||
2DK-20 |
6303 zz/6203 zz | |||||
7 CAPACITOR | Pump | Capacitance | ||||
Single-phase | (230V or 240V) | (110V) | ||||
1DK-14 | 10μF 450VL | 25μF 250VL | ||||
1.5DK-20 | 20μF 450VL | 40μF 300VL | ||||
2DK-20 | 45μF 450VL | 80μF 250VL | ||||
8 ELECTRIC MOTOR | DK: single-phase 230V - 50Hz with thermal overload protector bull-in to the winding. | |||||
DK: three-phase 230/400 V-50 Hz | ||||||
Pumps fitted with the three phase motor opton offer IE2(IEC60034-30)class high performance | ||||||
lnsulation:F class. | ||||||
Protection:lP X4. |
